Double Frame Heavy Duty Film Faced Plywood Hot Press Machine
Hot press laminating machines are crucial for the production of plywood, anti-slip plywood, and hexa plywood.

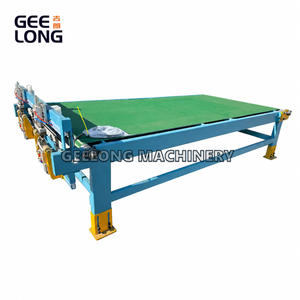

The process works as follows: Workers place the film and flat plywood onto the platform of an automatic feeding device. This device automatically transports the laminated plywood through each layer of the feeder before the automatic feeding mechanism moves it to the hot press. Under high pressure, the film adheres to the plywood.
Typically, the hot press operates with its own automatic feeder to laminate both sides of the plywood at once, enhancing time efficiency and productivity.
Our Double Frame Hot Press Machine is engineered for industrial-scale manufacturers who demand the highest levels of precision and durability. Unlike standard single-frame presses, the Double Frame (Twin-Frame) design provides a significantly more rigid structure, minimizing mechanical fatigue and ensuring that pressure is distributed with absolute uniformity across the heating platens.
Advanced Structural Engineering: The Double Frame Advantage
1. Reinforced Twin-Frame Design: Constructed from premium heavy-duty steel plates, the double-frame structure effectively absorbs vibration and prevents frame deformation under high-tonnage operation (up to 2000T).
2. High-Precision Pressure Control: Optimized for film faced plywood and marine plywood, the rigid frame ensures the top and bottom platens remain perfectly parallel, eliminating thickness deviation in the finished boards.
3. Heavy-Duty Hydraulic Cylinders: Equipped with large-bore, high-pressure cylinders that deliver consistent force, ensuring a mirror-like or textured finish on phenolic film surfaces.
4. Enhanced Longevity: The double-frame architecture reduces the stress concentration on welding points, extending the machine's operational lifespan by up to 30% compared to conventional models.
Technical Specifications
Feature | Details |
Structure Type | Heavy Duty Double Frame (Reinforced) |
Total Pressure | 1000T/1200T / 1600T / 2000T (Customizable) |
Number of Openings | 10,15, 20 Layers (Customizable) |
Platen Size | 1220x2440mm / 1250x2500mm (Customizable) |
Heating Medium | Thermal Oil or Steam |
Accessory Products
 |  |

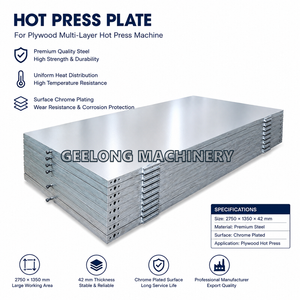

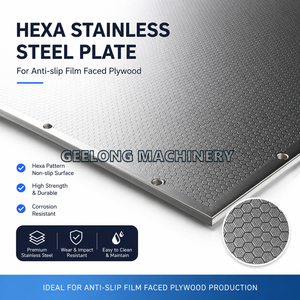

| Hexa stainlelss steel plate for anti-slip plywood | Plywood hot press plate |
 |  |
| Hydraulic station | Buffering cushion pad |
 |  |
| Hot press machine frame | Hydraulic oil cylinder |
 |  |
| Film faced plywood | Hexa anti slip plywood |
